Guangzhou BW Motorized Retractable LCD Lift / Pop Up Electric Computer Monitor Screen Lift System

FOB Reference Price:Get Latest Price
$215.00 - $420.00 / Sets | 1 Set/Sets Retractable LCD Lift (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Audio Conference System, Network Conference System, Video Conference System
Function:
Desk Monitor Lift
Simultaneous Interpretation:
No
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
BW
Model Number:
BW-LU17
Size:
17",19",22",24"
Color:
silver/black
Material:
aluminum alloy
Loading capacity:
8.5KG
Voltage:
220V
Max power:
25W
Remote distance:
35M
Surface treatment:
aluminum oxidation wiredrawing
Operation:
belt gearing & dual rack
Warranty:
one year
Supply Ability
Supply Ability:
1000 Set/Sets per Month Retractable LCD Lift
Packaging & Delivery
Packaging Details
Retractable LCD Lift 1 PC/CTN; 2PCS/CTN
Port
Guangzhou
Lead Time :
5-7 days after receiving the payment

Guangzhou BW Motorized Retractable LCD Lift / Pop Up Electric Computer Monitor Screen Lift System



  DESCRIPTION Of Retractable LCD Lift

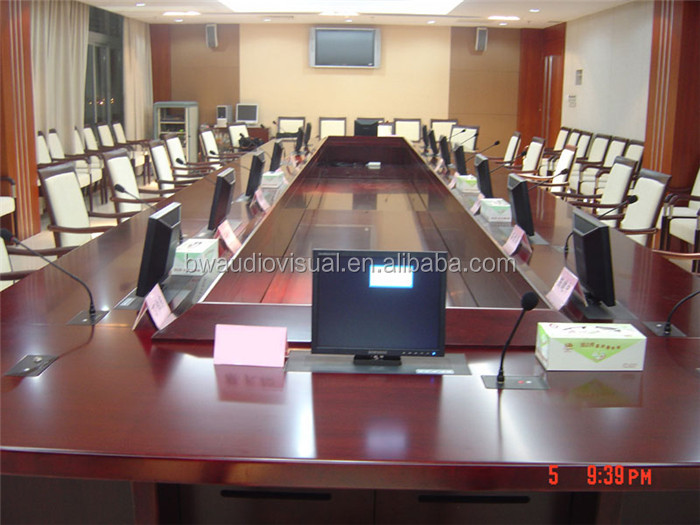

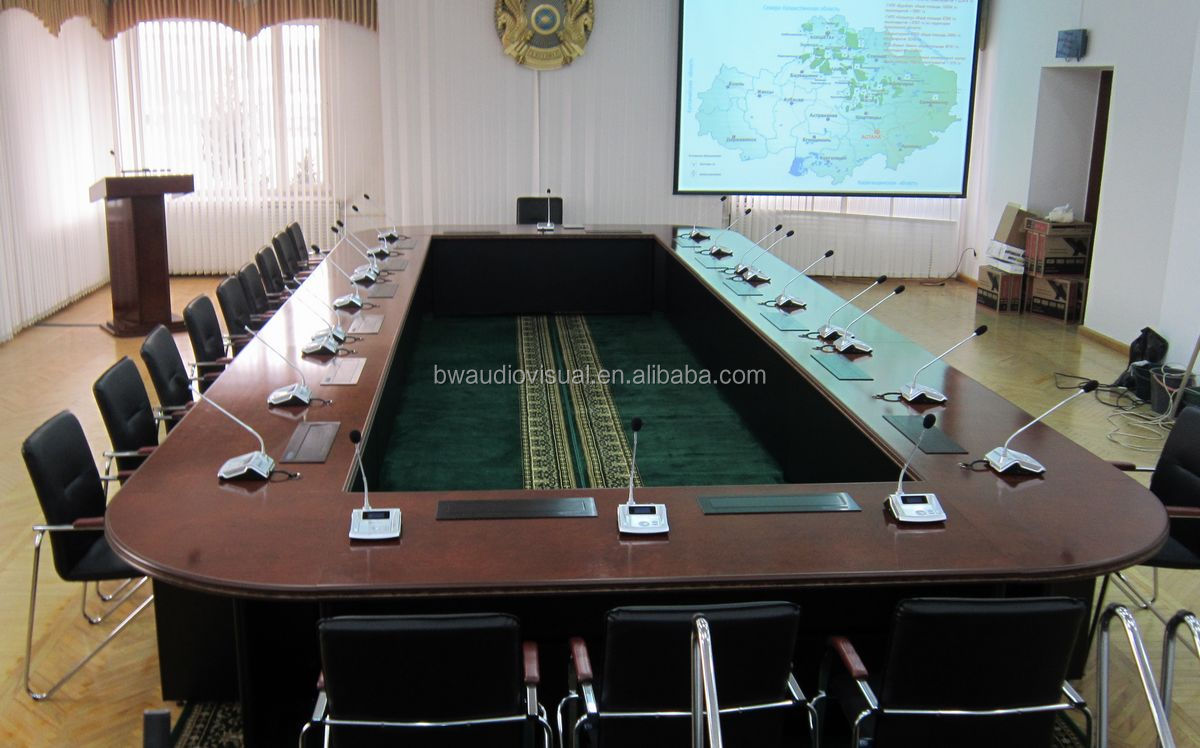

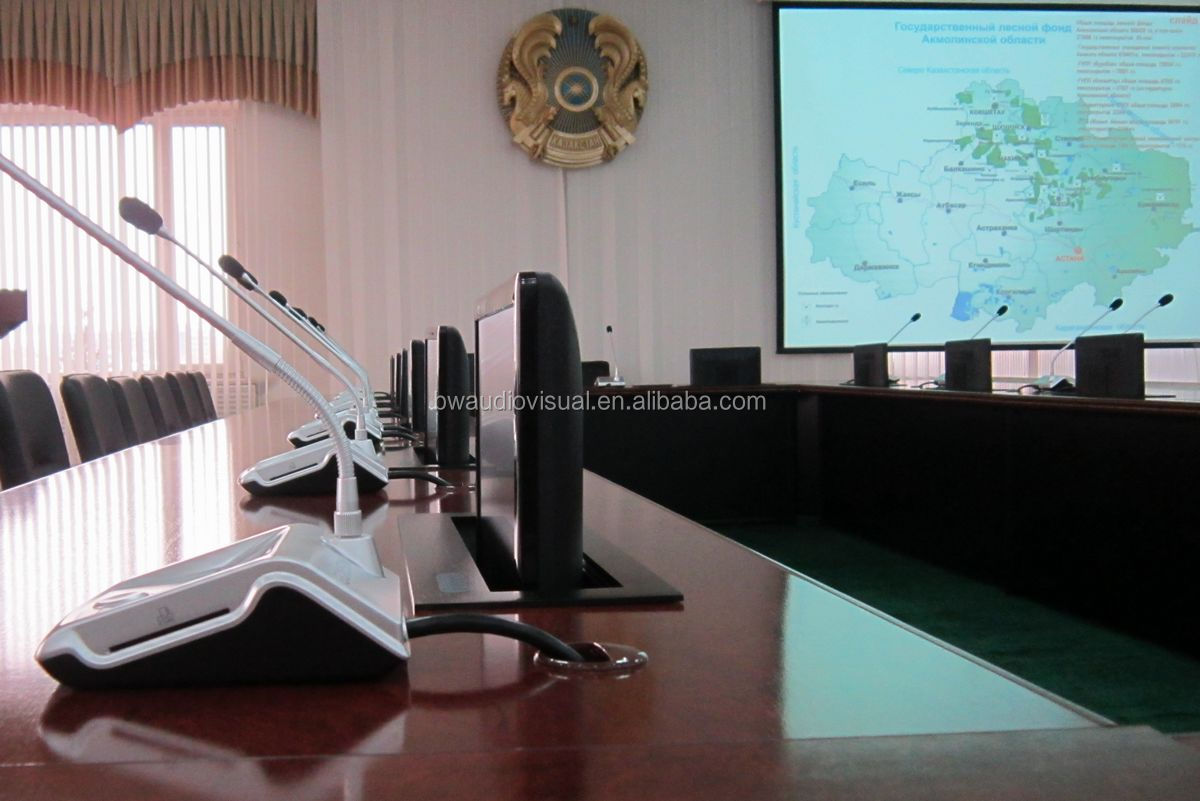

   BW-LU series retractable lcd lift specially designs for high-class conference solutions. With its stable and reliable performance, simple and smart operation, It’s pretty popular in AV conferencing, intelligent office furniture, multimedia education, military command and financial analysis system etc.



   With its unique overall functions, it provides an efficient solution and enjoyable experience in conference communication especially for enormous information share like data, image and sound etc. The lift is usually used together with our tabletop sockets to produce unexpected results.



   Characteristics Of Retractable LCD Lift

  1. 17”, 19”,22”, 24” available, others can be customized
  2. Aluminum oxidation with drawing polishing surface process to make sure smooth and bright panel
  3.  Adopting superior gear machine to produce precise gear to ensure stable and reliable lift;
  4. Selecting qualified mute motor with CE CCC marked
  5. Drive sytem: constructed by belt gearing and dual-rack system that highly improve the operation stability and also make very low noise.
  6. Provided with English buttons to control the lift, UP, DOWN, STOP, FORWARD, BACKWARD
  7.  Remote control ,manual control and central control;
  8. Circuit Board protection system: Supply power automatically when the monitor lifts up. Power off automatically when lift down to help reduce energy consumption
  9. Adjustable angel of the screen after lifts up.
  10. Equipped with different data interfaces for convenient data access.
 Parameters Of Retractable LCD Lift
Item NO.BW-LU17BW-LU19BW-LU22
StyleLCD Lift with monitorLCD Lift with monitorLcd lift with monitor
ProductsMonitor+lift+remote controlMonitor+lift+remote controlMonitor+lift+remote control
Panel size490*160*4mm550*160*4mm620*190*4mm
Box size470*150*655mm530*150*655mm600*175*665mm
Panel thickness4mm4mm4mm
Lift mount size420*80mm480*80mm540*105mm
Packing size578*250*770mm650*270*780mm720*300*850mm
N.W22kg24kg28kg
Voltage110-220v110-220v110-220v
Power20W20W20W
Pitch angle0-15°0-15°0-15°
Single trip time20s20s20s
Working Temp.0-45°0-45°0-45°
R.H.80%80%80%
Colorsilver/blacksilver/blacksilver/black
Remote distance35m35m35m
Operation noise30db30db30db
MaterialWiredrawing aluminum alloy Wiredrawing aluminum alloy Wiredrawing aluminum alloy
Control wayTouch key-press/Remote control/RS485 central controlTouch key-press/Remote control/RS485 central controlTouch key-press/Remote control/RS485 central control
Running way double motor with gear drive double motor with gear drive double motor with gear drive
Protecting wayprotecting finger from nippingprotecting finger from nippingprotecting finger from nipping
Accessorystator 2pcs  screw(5*10mm)4pcs  power line 1 pc

 Package&Shipping Of Retractable LCD Lift

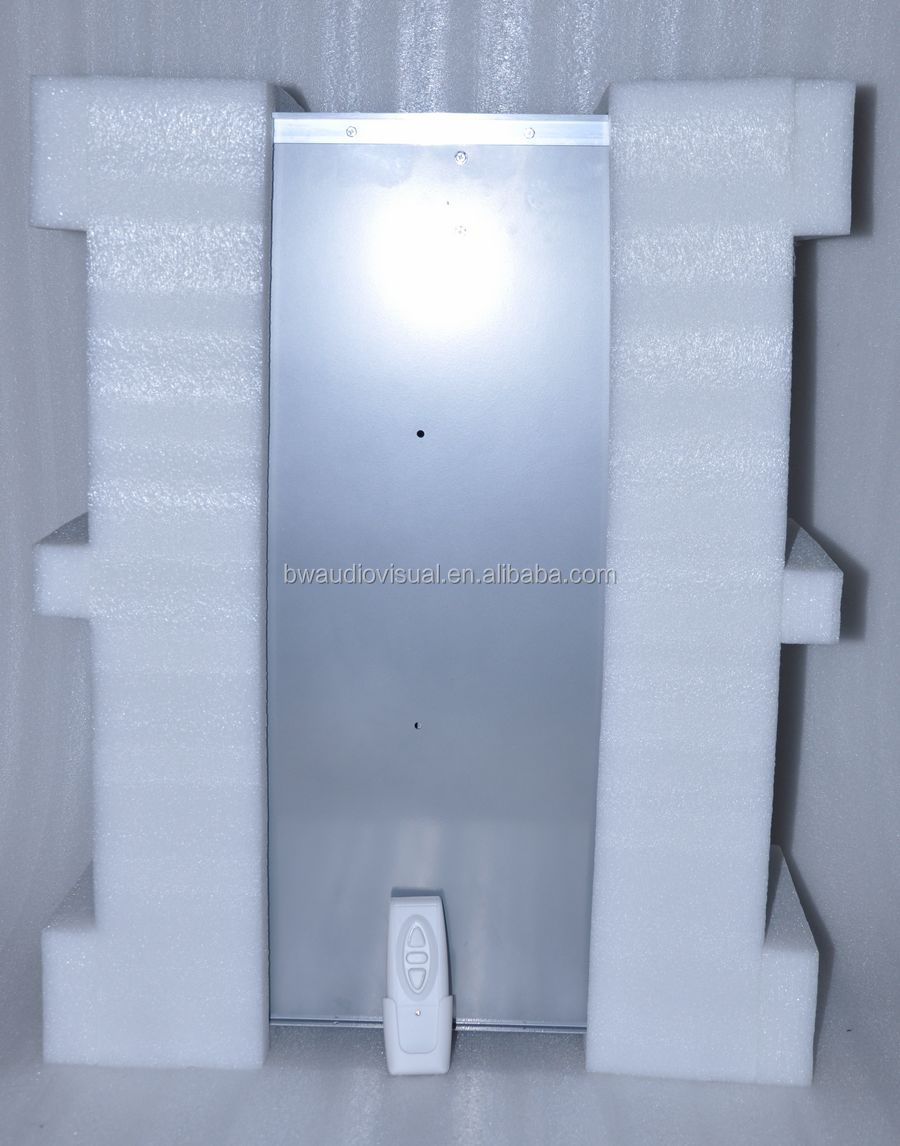

Retractable LCD Lift BW-LU17 package, usually is with standard export cartons:

    1pc/ ctn   58*25*77cm

    3pcs/wooden case 64*63*73cm

    by courier like DHL, FedEx, UPS, TNT, TOLL etc.

   by air to any airport around the world

   by sea to any port around the world

   by trail to inland countries





 Service

1. Sample service is available

2. OEM is warmly welcomed

3. Shipment and sample quality tracking.

4. Quick response , enquiry will be repond within 24 hours

5. high qualified after sale service



FAQ

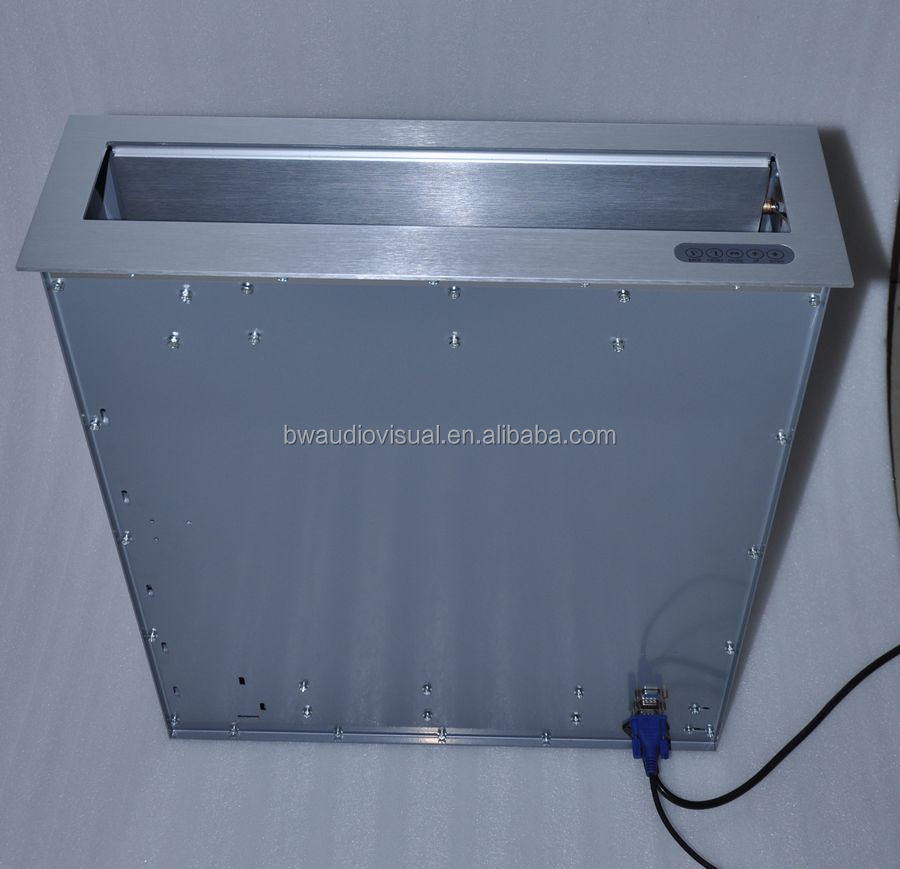

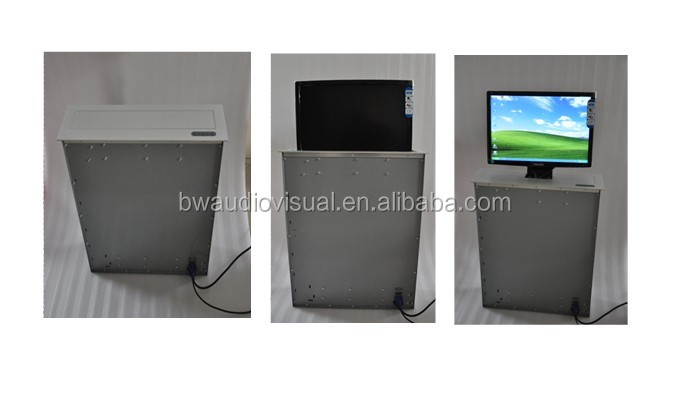

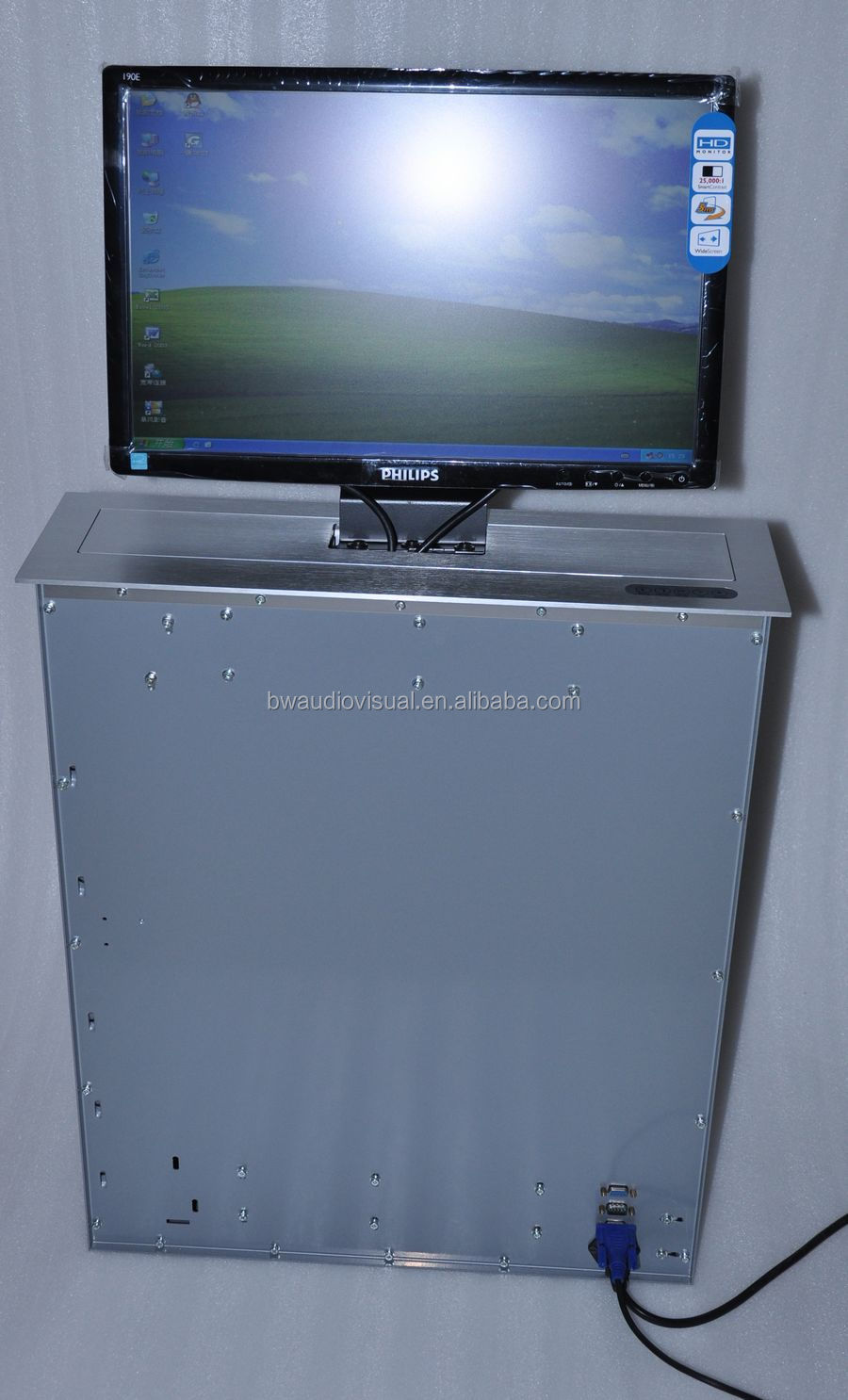

 Pictures Of Retractable LCD Lift

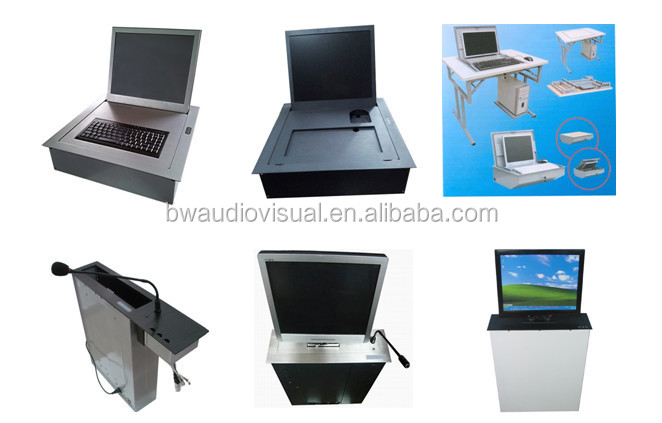

Other Related Retractable LCD Lift
