Pneumatic Automatic Up And Down Motorized Tabletop Plug/Electric Power Socket Outlet

FOB Reference Price:Get Latest Price
$32.00 - $48.00 / Pieces | 1 Piece/Pieces Motorized Tabletop Plug (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
BW
Model Number:
BW-T655
Type:
Tabletop Socket, pop up module
Grounding:
Standard Grounding
Rated Voltage:
220V
Rated Current:
13A
Application:
Commercial
Category:
tabletop
N.W:
2.13KG
Port:
male+female
Connectors:
changed on your request
Mechanism:
hydraulic automatic
Tilt degree:
45 degrees
Price:
direct factory price
Operation temperature:
at -10 °C or above
Warranty:
1 year
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month Motorized Tabletop Plug
Packaging & Delivery
Packaging Details
Motorized Tabletop Plug with Package size:21*16*19cm /PC
Port
Guangzhou
Lead Time :
5-7 working days after receiving the payment

 BW-T655 Pneumatic Automatic Up And Down Motorized Tabletop Plug/Electric Power Socket Outlet



  Description Of Motorized Tabletop Plug

    BW-T65 series motorized tabletop plug are with high quality aluminum with anodizing surface treatment, which is ideal for board room, classroom, training room, hotel system, lecture room etc. With its advanced appearance and innovative design, it has become one of our latest promotion products. Once use finished, can be hidden in the table.



  Feature Of Motorized Tabletop Plug

1. with square shape, it takes small area on the desk;

2. female and male port makes convenient use;

3. pop-up operation to hide all the modules;

4. with quiet pneumatic pressure gas pole

5. changeable connectors combinations to satisfy different customer's request;

6. after use finished, surface of tabletop pop up socket flush with the desk;



General Of Motorized Tabletop Plug

Power110V-240 VAC 50/60Hz 13A(with power-off indicator)
computer 15-Pin HD VGA female
audio3.5mm stereo female jack/RCA female
videoRCA female
LANRJ-45(CAT.5E) network/cat6/data/connector
TelephoneRJ-11 voice(CAT3)
USB USB2.0 female
HDMIHDMI1.3 female
MIC6.35mm stereo female jack



Technical Of Motorized Tabletop Plug

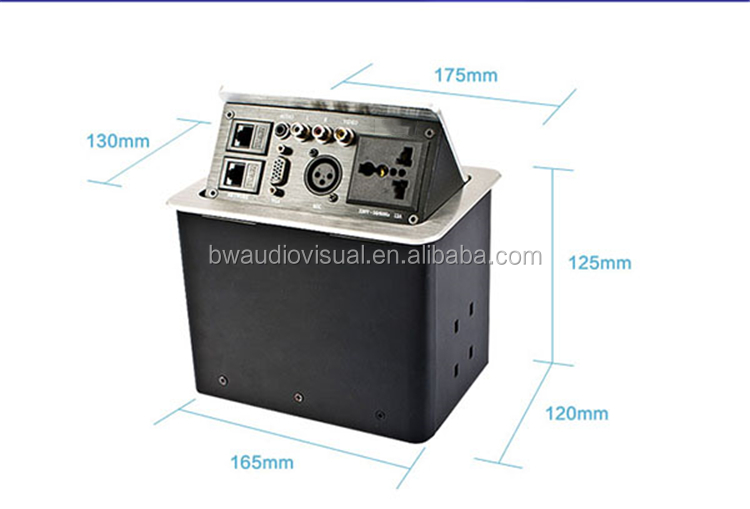

DimensionsOverall (LxWxH) 175 x 130 x 130
MaterialSteel box profile + Aluminum top panel
FinishSilver/black tilt-up cover, Oxidation and Blushed
Max table thickness60mm or 125mm(to be connected to extended part)
Mounting hole165mmx120mm, R=12
Work mannerPress up the cover and plug in the required connectors when use and release them back on the desktop.



Technical Advantages Of Motorized Tabletop Plug

1. Selected 5mm thickness aluminum panel

2. Gap between the inner and outer panel within 0.5mm

3. Oxidation and blushed treatment

4. Round corner, more smooth and beautiful

5. Cleaned weld point, no sharp welding spatter left over in the box



Operating process Of Motorized Tabletop Plug

After the use finished, only must gently press down the connectionless, the mechanical caging locks the connection box immediately, the hidden desktop socket box is flushing with desk.

Package& Shipping Of Motorized Tabletop Plug

1pc in a small package size 21*16*19cm

6pcs in a big package size:  37^45*25cm

by courier like DHL, FedEx, UPS, TNT, TOLL etc.

by air to any airport around the world

by sea to any port around the world

by trail to inland countries



Service

1. Sample service is available

2. OEM is warmly welcomed

3. Shipment and sample quality tracking.

4. Quick response , enquiry will be repond within 24 hours

5. high qualified after sale service

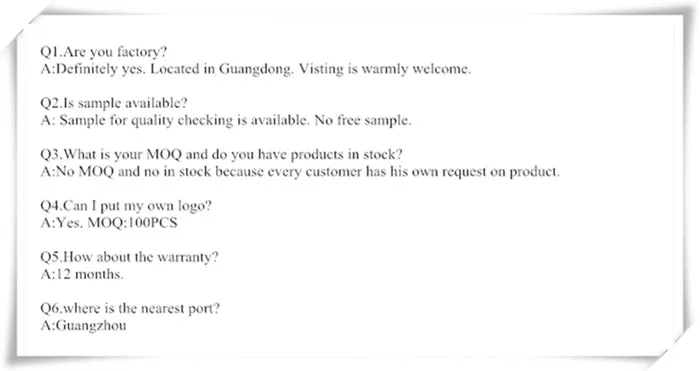

FAQ

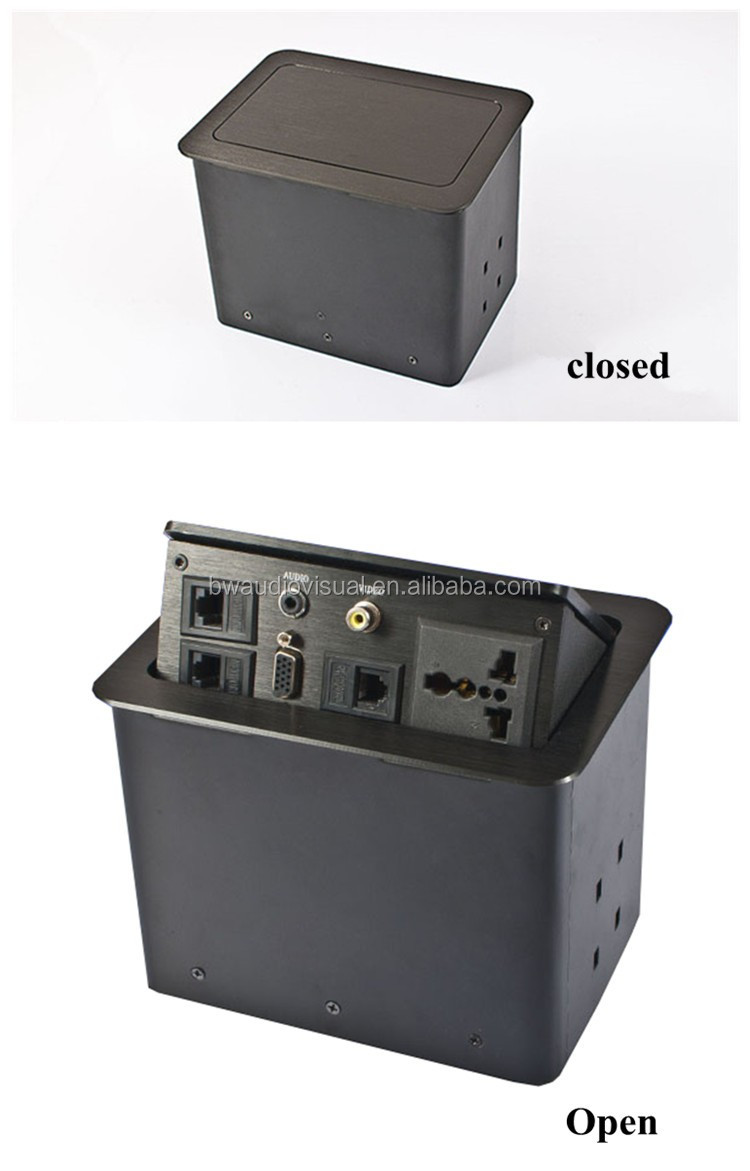

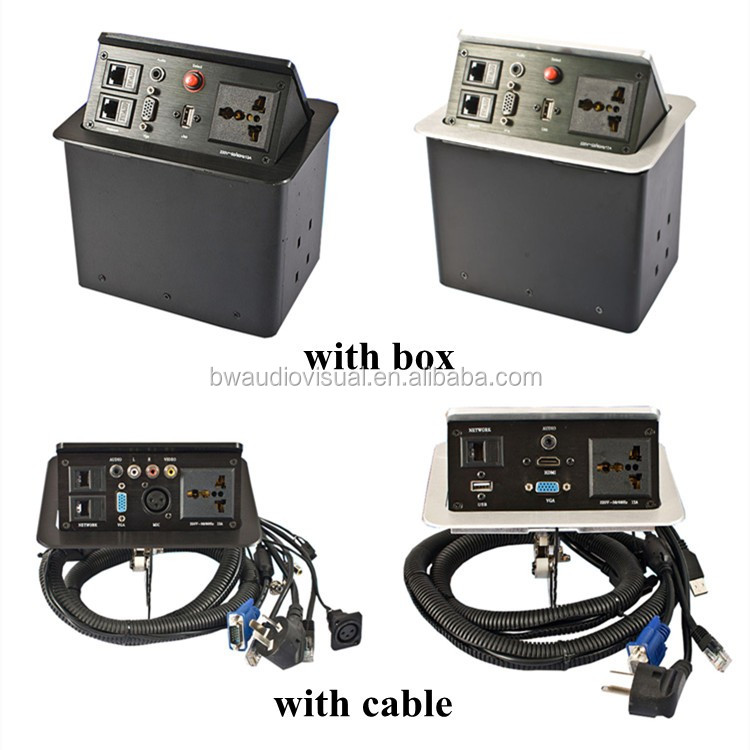

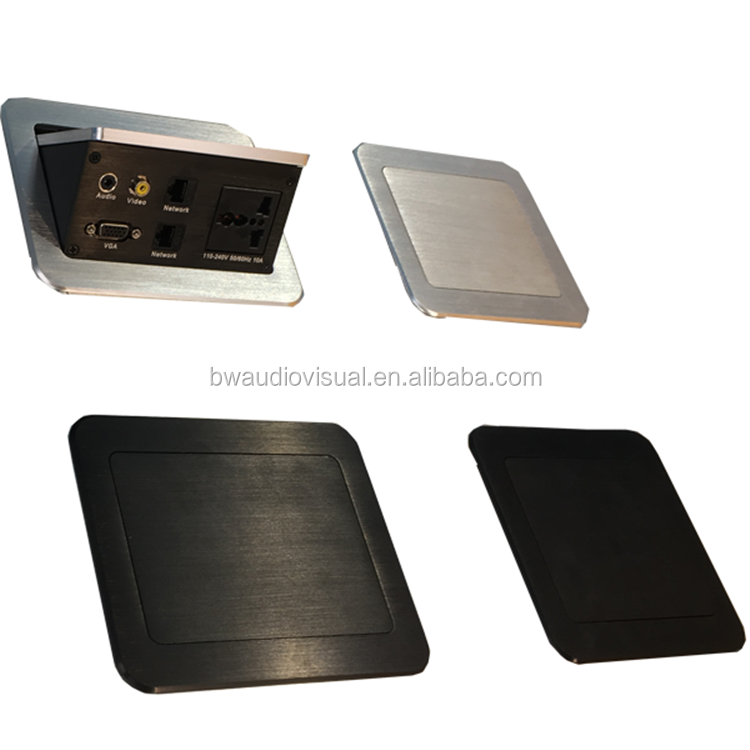

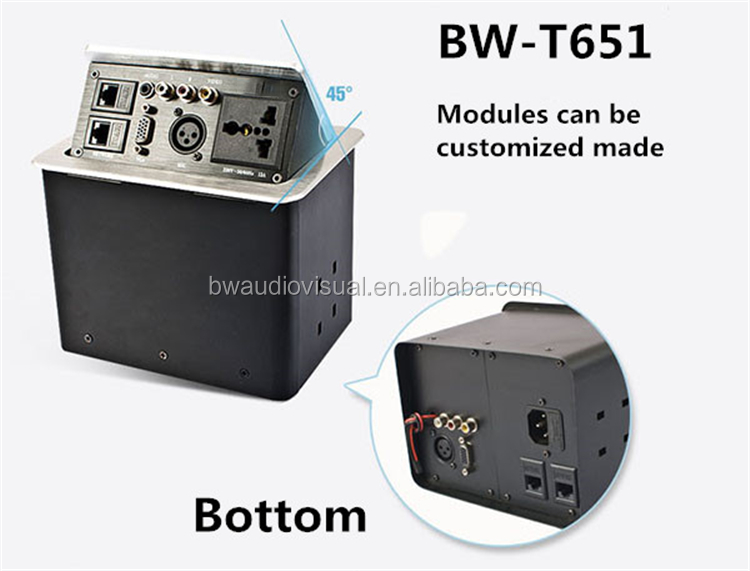

Pictures Of Motorized Tabletop Plug

   Other Related Motorized Tabletop Plug

Factory Show

Payment Method

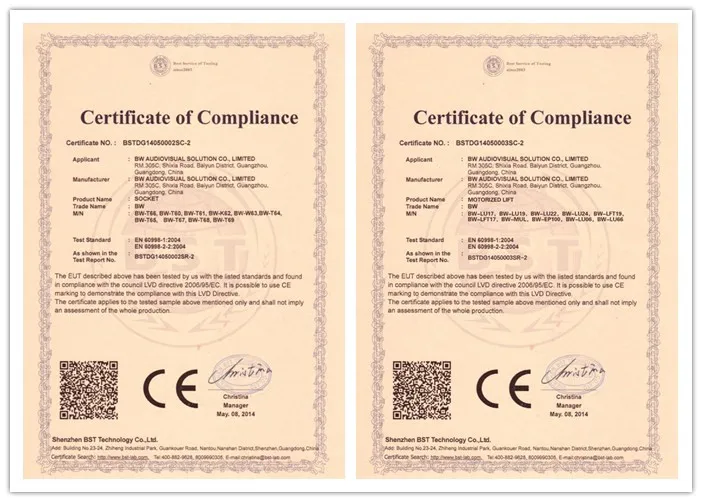

Certifications

 Warmly Welcome Contact Details
