10 minutes quotation recessed aluminium high resolution electric automatic lcd lift

FOB Reference Price:Get Latest Price
$215.00 - $420.00 / Sets | 1 Set/Sets ultrathin computer screen lift (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Audio Conference System, Network Conference System, Video Conference System
Function:
Motorized Lift
Simultaneous Interpretation:
No
Place of Origin:
Guangdong, China
Brand Name:
BW high resolution electric automatic lcd lift
Model Number:
BW-HSLU17.3 high resolution electric automatic lcd lift
Product Name:
high resolution electric automatic lcd lift
Screen Size:
15.6", 17.3",18.4",21.5"
Color:
silver/black
Material:
all aluminum including lift box
Voltage:
AC220V 50/60HZ
Monitors:
HD Screen 16:9
HD Screen:
Touch or non touch
Surface treatment:
aluminum oxidation wiredrawing
Resolution:
1920*1080
Warranty:
one year
Supply Ability
Supply Ability:
1000 Set/Sets per Month electric automatic lcd lift
Packaging & Delivery
Packaging Details
electric automatic lcd lift 1 PC/CTN; with foam protection
Port
Guangzhou
Lead Time :
5-7 days after receiving the payment

10 minutes quotation recessed aluminium high resolution electric automatic lcd lift



Product Description

 Introduction

   BW-HSLU ultra-thin high resolution electric automatic lcd lift is designed for the advanced conference system to provide an efficient solution and enjoyable experience in conference communication especially for enormous information share like data, image and sound. Besides its ultrathin design, this item also featured by the aluminum button switch which is easily controlled by a soft touch. It's no longer a lift only but also accompanied with the full HD screen.



Characteristics:

      1. high resolution electric automatic lcd lift is integrated with HD screen all in one lifting system. The screen will be up automatically by touch switch and remote control; after use finished, will be hidden into table automatically to tidy up the desktop;

2. especially for ultra-slim LCD/LED monitors as thin as 5mm depth;

3. HD screen for choosing: 15.6 inch, 17.3 inch, 18.4 inch, 21.5 inch, touch or non touch 1920*1080; others can be customized, like all in one PC, microphone etc.

4. total aluminum case for HD screen & lift box and aluminum wiredrawing surface treatment on top panel;

5. adopting synchronous belt gearing to assure quiet lifting;

6. two qualified mute motors, one for up and down, the other for angel adjusting, with magnetic clutch, to ensure stable lifting and the ability to lift itself to the proper position;

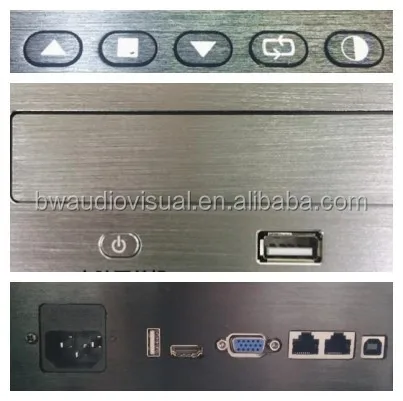

7. connectors: 1 HDMI, 2 USB, 1 VGA, 1 Power, 2 RJ45 for RS232/RS485;

8. buttons on panel: up, down, stop, signal switch, menu, on/off switch, 1 USB for data;

9. control: infrared remote control, central control and touch button control;

     10. circuit board protection system: supply power automatically when the monitor lifts up; power off automatically when lift down to help reduce energy consumption;

     11. CE CCC approved and one year warranty.





Operation:

1. Before used, check terminal power and connection lines;

2. Code proofreading of remote control if needed, details refer to manual pls;

3. Press “UP” button on the panel or controller to lift up the monitor;

4. After the lift is up, the screen will be at suitable angel, if still need to adjust angle, press “up” & “down” buttons;

5. After use finished, press “down” button to lift down the monitor;

6. The power will be automatically off after lift down;

7. Plug off the power and connection lines.



Parameters



       Item NO.  BW-HSLU15.6   BW-HSLU17.3   BW-HSLU18.4  BW-HSLU21.5
     Configuration                          LCD lift+HD screen+ power cable+remote control
        Panel size    430*70*3mm   476*70*3mm     510*70*3mm     580*70*3mm

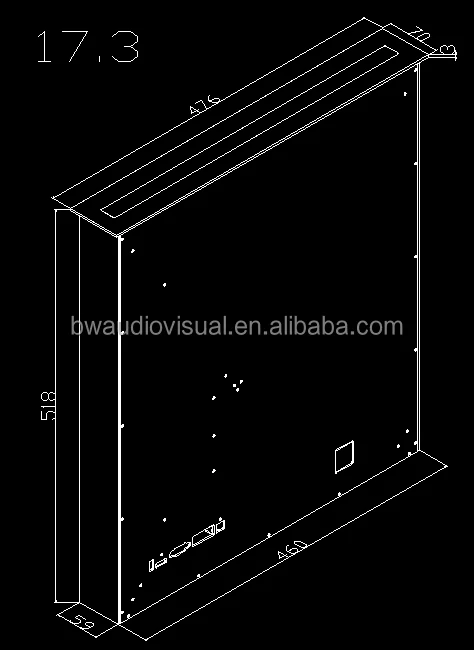

       Box size    415*60*497mm   460*60*518mm    495*60*547mm    565*60*562mm
     Product size    430*70*500mm   476*70*521mm    510*70*550mm    580*70*565mm
        Monitor   15.6" HD screen   17.3" HD screen   18.4" HD screen   21.5" HD screen
       Resolution               1920*1080  16:9                  1920*1080  16:9
          N.W         7KG          8KG             9KG           12KG
       Connectors 2 USB, 1 HDMI, 1 VGA, 1 Power, 2 Data for RS232/RS485
     Panel Buttons1 USB, ON/OFF switch for computer host, up, stop, down, VGA TO HDMI Signal Change, Menu
      2 MotorsFor Up & Down: 18W,5r/min                                                                                   For Pitch Angle: 14W,5r/min
     Pitch angle15°-30°
      VoltageAC220V±10% 50HZ
   Working Temp.0-45°
      Materialall aluminum including lift box
        Colorsilver/black



Pictures





Related product
Packaging & Shipping



Product sizeQtyPacking szeG.W
15.6"1pc/ctn63*49*1cm/ctn8.7kg/ctn
17.3"1pc/ctn65*53*15cm/ctn9.4kg/ctn
18.4"1pc/ctn68.5*59*15cm/ctn11kg/ctn
21.5"1pc/ctn71*66*15cm/ctn14kg/ctn

VehicleDestination
By Courier(DHL,FedEx, UPS,TNT, TOLL etc.)To office or stock
By airTo any airport around the world
By seaTo any port around the world
By trailTo inland countries
Our Services

1. Sample service is available

2. OEM with logo printing is warmly welcomed

3. Shipment and sample quality tracking.

4. Quick response , enquiry will be repond within 24 hours.

Company Information

      BW Audiovisual Solution CO.,LTD is a company strongly commited to innovation, high-tech products development and strict quality standard, located in Guangzhou.

     At BW Audiovisual, we consistently strive to offer the professional and entire all-in-one office automatic solution at affordable prices. We rely on high qualified human sources and technology; we listen to what our customers need; we persist on creating as much as value for all our customers.

   We supply various sizes lcd lift with or without monitors, with microphone and desktop sockets, TV lift.



   Factory & Warehouse





Why choose us:

      1,Reply to your inquires in 24 hours;

      2,Offer ODM & OEM service;

      3,Advanced manufacturing facilities, mature technology;

      4,Food grade material;

      5,Great value cost-effective.







Support

      1.according to your requirement, printing customers' own logo or customized package;
       2.Quality control strict producing inspection and before selling test applied;
       3.Lead time  3-15 working days for usual order;
       4.Special service;
       5.Trail order and sample order available.


FAQ

 Q1: Are you factory?
A: Definitely yes. BW Audiovisual Solution, located in Guangdong, visiting is warmly welcome.
Q2: Is sample available?
A: Sample for quality checking is available. No free sample.
Q3: Can I make the socket according to my modules request?
A: Yes. Modules are changeable and can be assembled at random.
Q4: What is your MOQ and do you have products in stock?
A: No MOQ and stock. Because each customer has different requests on modules.
Q5: Can I put my own LOGO?
A: Yes. MOQ is 100PCS.
Q6: How about the package?
A: Standard neutral export big carton with sponge and small individual carton inside.
Q7: How about the warranty?
A: 12 months warranty and all-life after sale service
Q8: Where is the nearest port?
A: Guangzhou.
